Sunstone Pro-S Servo Weld Head with Built-In Displacement and Force ✓ Misura calibrata per un fissaggio uniforme e preciso ✓ Adatte per fissare cavi elettrici e tubazioni in sicurezza ► Fissa con sicurezza ogni materiale

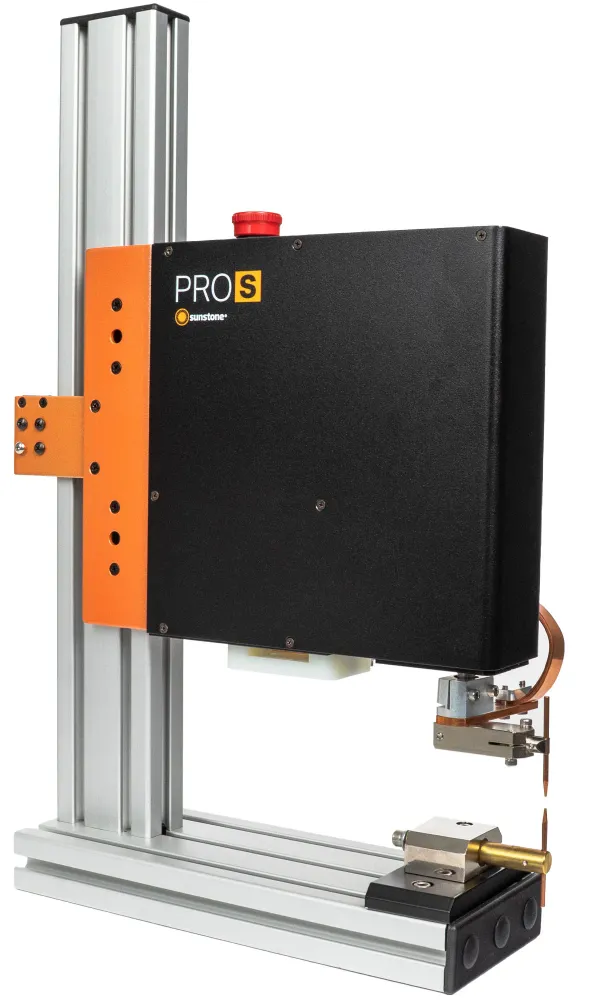

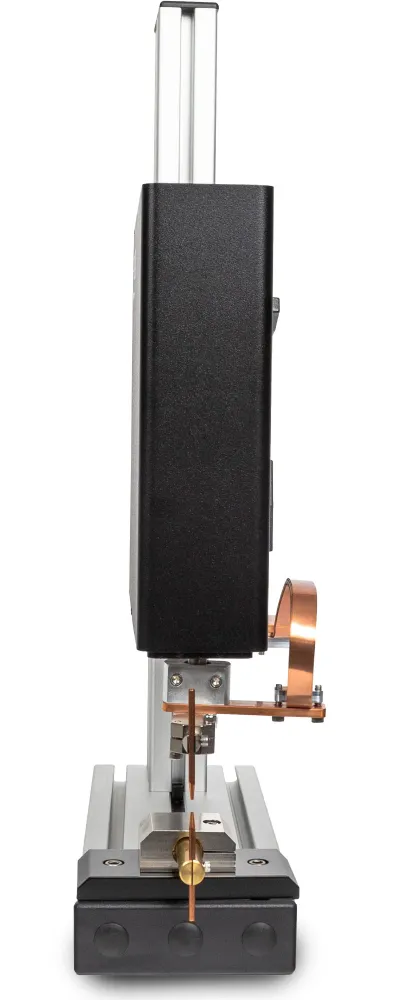

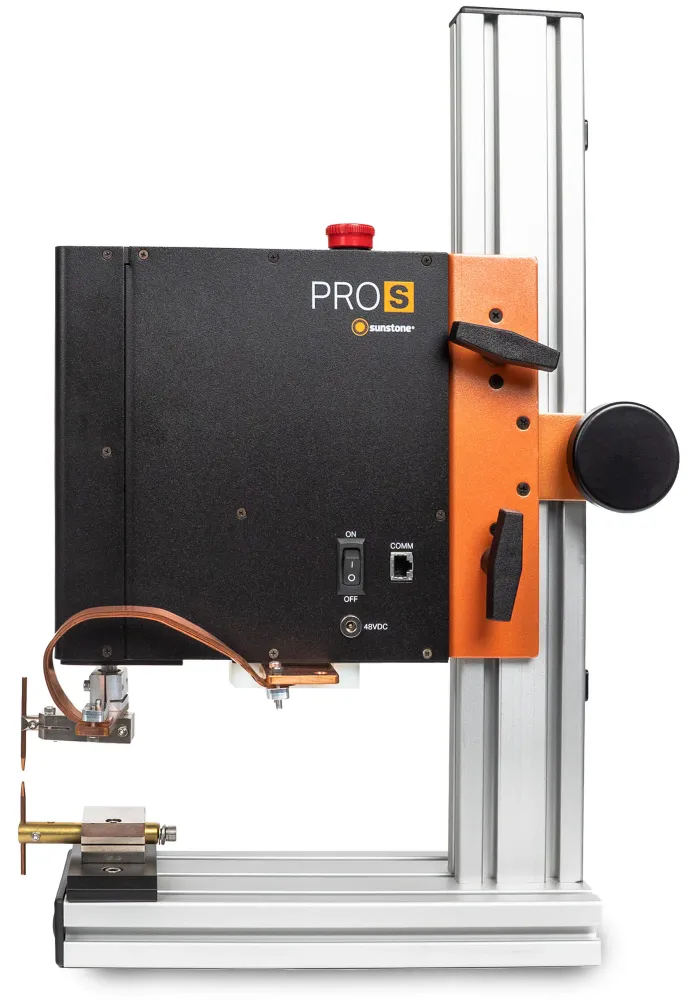

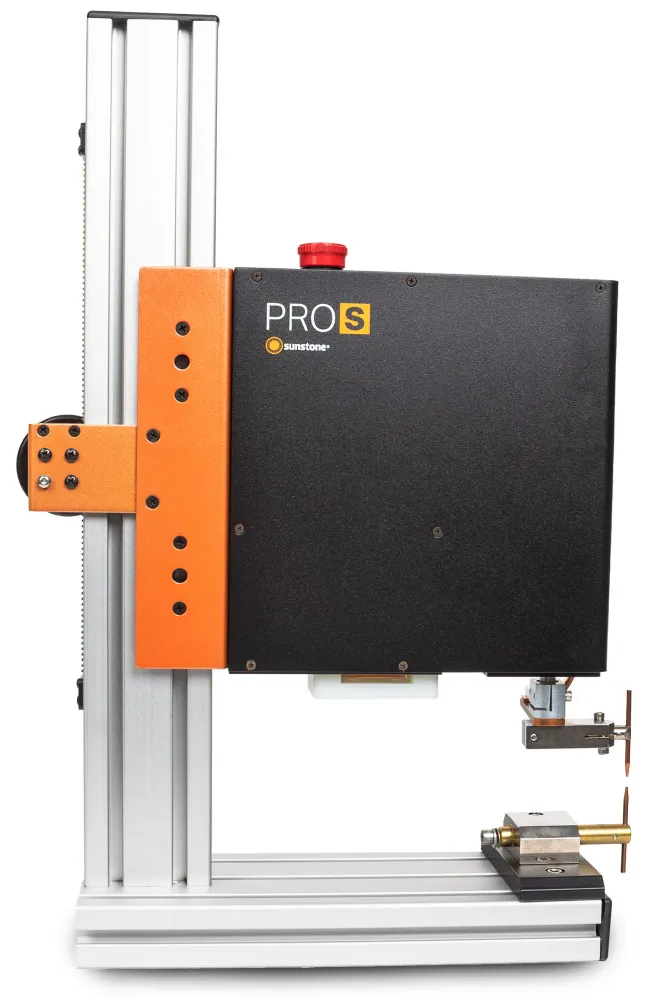

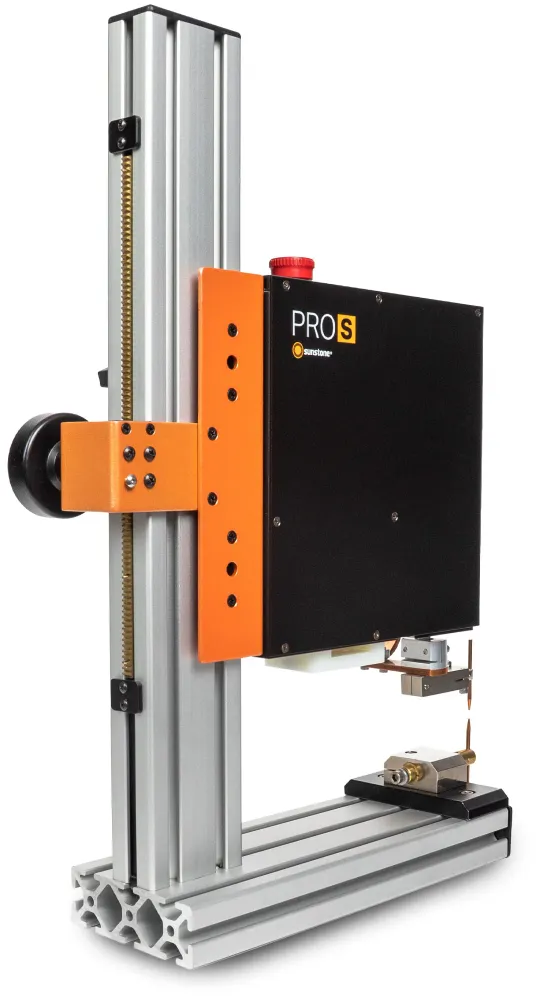

The Sunstone Pro-S is a servo-powered weld head that provides high-end features at a mid-range price. Available in an opposed configuration, the Pro-S provides quality welding results for automated, high-production environments or as a sovrapponibile solution for smaller shops. Built-in monitoring comes standard with the Pro-S. Any manufacturer that utilizes resistance welding in their manufacturing process will see immediate efficiency gains with the Pro-S.
Key Features
- Force Feedback Monitoring
- Displacement Feedback
- Pull Positional Monitoring
- Faster Operational Speed
- Increased Precision vs Pneumatic-Powered Weld Heads
- Adjustable Weld Head Force between 1.8 to 29.2 lbs (8 to 130 N)
- Positional displacement accuracy of 60 µm
- 2” stroke (50 mm)
- Automation-Ready
- Rotary Knob Height Adjustment
- Multiple Electrode Configuration Possibilities
- Optional Foot Pedal Control
</ul
